OWON AG1052F 50MHz 2-CH Arbitrary Waveform Generator

€288.00

OWON AG1052F 50MHz 2-CH Arbitrary Waveform Generator

€288.00

OWON AG1052F 50MHz 2-CH Arbitrary Waveform Generator with 125MS/s Sample Rate and 2 pts to 8kpts Arb Wave Length

OWON's AG1022F 25MHz Dual Channel function generator with advanced DDS technology, 125Ms/s and. The vertical resolution is a high 14 bits. The device can generate the following signals: Sinus, Block, Saw-tooth, Pulse, Noise, Sync, or exponential (rise/decay) or a 32 channel digital wave. It can give a DC output, or modulate with AM, FM, PM, FSK and PWM.

45 Build-in arbitrary waveforms

Dual Channel Equivalent Output

OWON AG1022F Specifications :

  •  Advanced DDS technology, up to 25MHz frequency output
  • 125MS/s sample rate, and 1μHz frequency resolution
  • Vertical Resolution : 14 bits, and 8K arb waveform length
  • Comprehensive waveform output : 5 basic waveforms, and 45 built-in arbitrary waveforms
  • Comprehensive modulation functions :
    AM, FM, PM, FSK, PWM, ASK, PSK, Sweep, and Burst
  • SCPI, and LabVIEW supported
  • 4'' high resolution (480 x 320 pixels) LCD
  • could work with OWON SDS Series DSO smoothly

Build-in 200MHz hardware counter

6 bits/sec frequency rate, frequency measure ranges from 100MHz ~ 200MHz. Signal time, duty cycle and pulse width can be measured.

Model AG1022F
Channel dual + trigger
Frequency Output 25MHz
Sample Rate 125MS/s
Vertical Resolution 14 bits
Standard Waveform Sine, Square, Pulse, Ramp, and Noise
Arbitrary Waveform Exponential Rise, Exponential Fall, Sin(x)/x, Step Wave, and others, total 45 built-in waveforms, and user-defined arbitrar y waveform
Modulation Waveform AM, FM, PM, FSK, ASK, PSK, Sweep, and Burst
Modulation Frequency 2mHz to 20.00KHz (FSK 2mHz - 100KHz)
Cymometer
Function Frequency, Period, +Width, -Width, +Duty, and -Duty
Frequency Range 100mHz ~ 200MHz
Frequency Resolution 6 digits/s
Modulation Waveform AM, FM, PM, FSK, ASK, PSK, Sweep, and Burst
Modulation Frequency 2mHz to 20.00KHz (FSK 2mHz - 100KHz)
Input Impedance 50 kΩ
Max Input Voltage 2.2Vpp
Max Output Voltage 22 Vpp
Output Slew Rate 10V/us
Max Output Power 10 W
Input Impedance 50 kΩ
Display 4 inch (480 × 320 pixels) LCD
Type counter external modulation input,external trigger input ,external reference clock input / output
Communication Interface USB host, and USB device, RS232 (option)
Mechanical
Dimension (W×H×D) 235 × 110 × 295 (mm)
Device Weight 3.00 kg

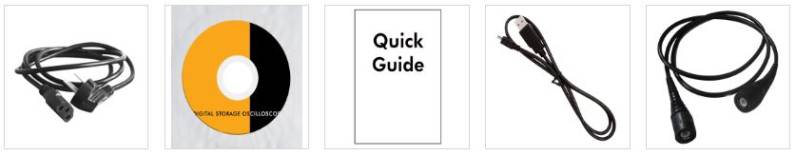

Accessoires Included:

1 x AG1022F waveform generator
1 x 220V Power cable
1 x CD ROM
1 x Quick start guide
1 x USB Cable
1 x BNC to BNC Cable
