OWON XDS2102A 2CH 100MHz 12 bits Economical Digital Oscilloscope

Sold out
€319.00

OWON XDS2102A 2CH 100MHz 12 bits Economical Digital Oscilloscope. XDS 2000 series oscilloscope is the economical branch of XDS series. Keep the decoding function as the standard pack function. With the same 8 inches large screen display and thin body. Now it's very cost-effective to keep one with the good feature of XDS series and lower price!

The OWON XDS2102A 2 Channel oscilloscope has an ADC of 12 bit instead of the usual 8 bit resolution. The vertical sensitivity of this osciloscope does not start at 5mV but at 1mV, and extends to 10V / div.

12 bits high vertical resolution, 8 inch TFT display

XDS series introduce 12 bits hardware ADC, the precision is 16 times against other 8 bits oscilloscope on market. This will make the measure result more clear. If you need to check the glitch without the interference from base noise. This also meet the demand of high accuracy measurement.

OWON SDX2102A Specifcations:

  • 12-bit high resolution ADC, restoring the waveform detail fully
  • 20M record length, and 55,000 wfms/s waveform refresh rate
  • low background noise, vertical sensitivity in 1 mV/div - 10 V/div
  • multi- trigger, and bus decoding function
  • SCPI, and LabVIEW supported
  • ultra-thin body-design, less space accommodation
  • multi-interface integration - USB host, USB device, USB port for PictBridge, LAN, AUX, and more+ VGA port - better solution for video expansion, and teaching demonstration
  • 8 inch 800 x 600 high resolution LCD

Max 55,000 frame/sec waveform refresh rate

Model XDS2102A
Bandwidth 100MHz
Sample Rate 1GS/s
Vertical Resolution (A/D) 12 bits
Record length 20M
Horizontal Scale (s/div) 2ns/div - 1000s/div, step by 1 - 2 - 5
Channel 2 + 1 (external)
Display 8" color LCD, 800 x 600 pixels
Trigger Type Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232,  and CAN (standard for XDS2102A/optional for other models)
Bus Decoding I2C, SPI, RS232, and CAN (standard for XDS2102A/optional for other models)
Communication Interface USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, and VGA (optional)
Power Supply 100V - 240V AC, 50/60Hz, CAT II
Fuse 2A, T class, 250V
Battery (optional) Not support
Dimension (W x H x D) 340 x 177 x 90 mm
Weight 2.60 kg

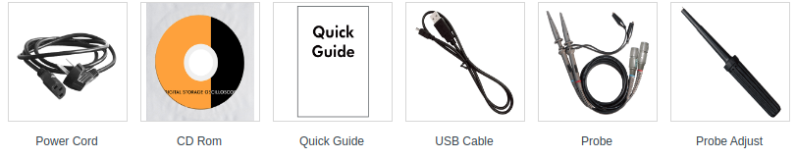

Accessories Included :

1x XDS2102A Oscilloscope
1 x 220V Power cable
1 x CD Rom
1 x Quick start Guide
1 x USB Cable
2 x 100Mhz Probes
2 x Probe adjustment tool

OWON XDS2000 Series DSO Technical Spec S
PDF – 267,4 KB 1684 downloads
XDS2000 Series Oscilloscopes USER MANUAL
PDF – 2,2 MB 1868 downloads
XDS2000 Series Oscillocope USB DRV
Archive – 3,5 MB 1675 downloads
