OWON SDS1052 50MHZ 2 Channel Digital Oscilloscope

€185.00

OWON SDS1052 50MHZ 2 Channel Digital Oscilloscope

€185.00

OWON SDS1052 2 Channel Digital Storage Oscilloscope, with up to 500MS/s real-time sample rates, maximum 50MHz bandwidth.

Rating: 0 stars
0 votes

The OWON SDS1052 offers a 7-inch color LCD screen with 800x600 resolution. The SDS1052 has a ultra-thin body at only 70mm deep for portability, and it offers a 10K record length per channel of memory.

Compact design

OWON SDS1052 Oscilloscope

  • Bandwidth : 50MHz
  • 2-Channel
  • Sample rate : 100MS/s -1GS/s
  • Ultra-thin body
  • 7 inch high resolution LCD
  • SCPI, and LabVIEW supported

Snapshot

One click, all measurement value comes from 30 auto-measurement options.

Model SDS1052
Bandwidth 50MHz
Sample Rate 100MS/s
Horizontal Scale (s/div) 5ns/div - 1000s/div, step by 1 - 2 - 5
Channel 2
Display 7" color LCD, 800 x 480 pixels
Input Coupling DC, AC , and GND
Vertical Resolution (A/D) 8 bits (2 channels simultaneously)
Vertical Sensitivity 5mV/div - 5V/div (at input)
Trigger Type Edge, Video
Trigger Mode Auto, Normal, and Single
Waveform Math +, -, x, ÷, invert, FFT
Fuse 2A, T class, 250V
Dimension (W x H x D) 301 x 152 x 70 mm
Device Weight 1.10 kg

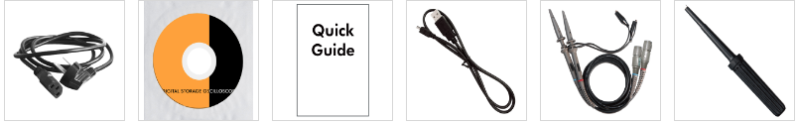

Accessories included :

1 x SDS1052
1 x Mains power cord
1 x CD Rom
1 x Quickstart Guide
1 xUSB Cable
2 x Oscilloscope probe
1 x Probe Adjust

SDS1000 Series Oscilloscope USER MANUAL
PDF – 1.4 MB 2 downloads
OWON SDS1000 Series Spec Sheet
PDF – 1.2 MB 1 download
