OWON OW16B 3 5/6 NCV Digital Multimeter

€26.00

OWON OW16B 3 5/6 NCV Digital Multimeter

€26.00

OWON OW16B 3 5/6 bit resolution Digital Multimeter with Bluetooth Module that Supports NCV non-contact voltage sense and True RMS test is supported

OWON OW16B Multimeter

  • 3 5/6 bit resolution
  • Data Logger + Multimeter + Thermometer (Data logger function only for OW16B)
  • BLE 4.0 wireless transmission, more stable, less power consumption (only for OW16B)

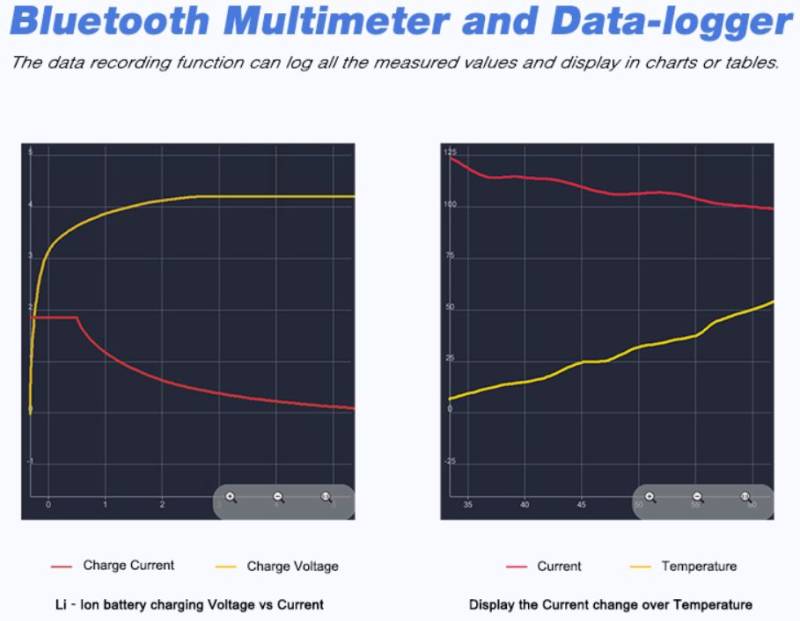

  • Chart and Diagram mode helps to analyze the data tendency (only for OW16B)
  • Support NCV non-contact voltage sense
  • True RMS test supported
  • Widely supported on Android, iOS  (only for OW16B)
  • Build-in offline record function (only for OW16B)



    Measurement Range Resolution Accruacy
DC Voltage (V)   6.000V/60.00V/600.0V 0.1mV
  1000V 1 V ±(0.8%+2dig)
AC Voltage (V)    6.000V/60.00V/600.0V 0.1 mV
  750V 1 V ±(1%+3dig)
DC Current (A) μA 600.0uA/6000μA ( EU ) 0.1μA
mA 60.00mA/600.0mA 0.01mA
A 10.00A 0.01A ±(1.2%+3dig)
AC Current (A)  μA 600.0uA/6000μA (EU) 0.1μA
mA 60.00mA/600.0mA 0.01mA
A 10.00A 0.01A ±(1.5%+3dig)
Resistance (Ω)  600.0Ω/6.000kΩ/60.00kΩ/600.0kΩ/6.000MΩ 0.1Ω ±(0.8%+2dig)
60.00MΩ 0.01 MΩ ±(2%+3dig)
Capacitance (F)  60.00nF/600.0nF/6.000μF/60.00μF 0.01nF ±(3%+3dig)
600.0μF/6.000mF/60.00mF 0.1μF ±(3%+5dig)
Frequency  9.999Hz/99,99Hz/999.9Hz/9.999kHz/99.99kHz/99.9kHz/9.999MHz 0.001Hz ±(0.8%+2dig)
Duty Ratio (%)  0.1%~99.9%(typical value:Vrms=1V,f=1kHz) 0.1% ±(1.2%+3dig)
0.1%~99.9%(≥1kHz) ±(2.5%+3dig)
Temperature (°C/°F)  '- 50 ℃~400℃ 1℃ ±(2.5%+3dig)
'-58 ℉ ~ 752 ℉ 1℉ ±(4.5%+5dig)
Display  5999
Frequency Response  (40 -1000) Hz
Shift Rate  3 times/s

Accessories included:

1 x OW16B Multimeter
1 x SET Probe Leads
1 x K-type Thermocouple
1 x Bolt Driver

Optional Accessories :

1 x Alligator Clip

OW 16 Series Digital Multimeter USER MANUAL
PDF – 1.9 MB 14 downloads
OWON OW16 Series Digital Multimeter Technical Specs
PDF – 1.5 MB 13 downloads
